SIMPLIFIED POWER DISTRIBUTION

Iskraemeco HPC System

The HPC Dispenser (HPCD 350/500) is a high-performance DC fast charger offering up to 400 kW, featuring a 15” sunlight-readable display, MID DC Meter, and optional cable management. Built for reliability, it supports dual CCS2 connections, load balancing, and OCPP protocols, suitable for both interior and exterior installations.
Contact Sales
Charge any car
Convenient and efficient charging for any car.
Weather proof
Resistant to harsh conditions.
Dual power
Charge two cars simultaneously.
Tried & tested
Charge with ease and confidence.
EASY & CONVENIENT

Main Features

View Docs
Charge up to 8 cars
Up to 4 HPC Dispensers can be connected to one HPC Power Unit.
Fully customisable HMI
15" display with advertising space
Cable Management
Optional CMS system for ease of use
Dynamic load management
Charge your car without thinking about excessive usage.
NEW ERA OF EV CHARGING

HPC Power Unit

Unleash ultra-fast charging with the HPC Power Unit, delivering up to 800 kW of dynamic power distribution. Designed for maximum efficiency (up to 96.5%), it supports dual CCS2 connections and intelligent load balancing to optimize energy usage.

Contact sales
NEW ERA OF EV CHARGING

HPC Dispenser

The HPC Dispenser (HPCD 350/500) is a high-power DC fast charger designed for rapid and efficient EV charging, offering up to 400 kW. Featuring a 15” sunlight-readable touchscreen, MID DC Meter, and dual CCS2 charging ports, it ensures a smooth user experience.

Contact sales
INSTALLMENTS

Installation Options

Lörem ipsum benade suregt europlada, antilungen av omyss att kyrktrappsbröllop. Fede valig. Ekostat vanar om ditivis fastän beseren till makroling fasam.
OPTION 1

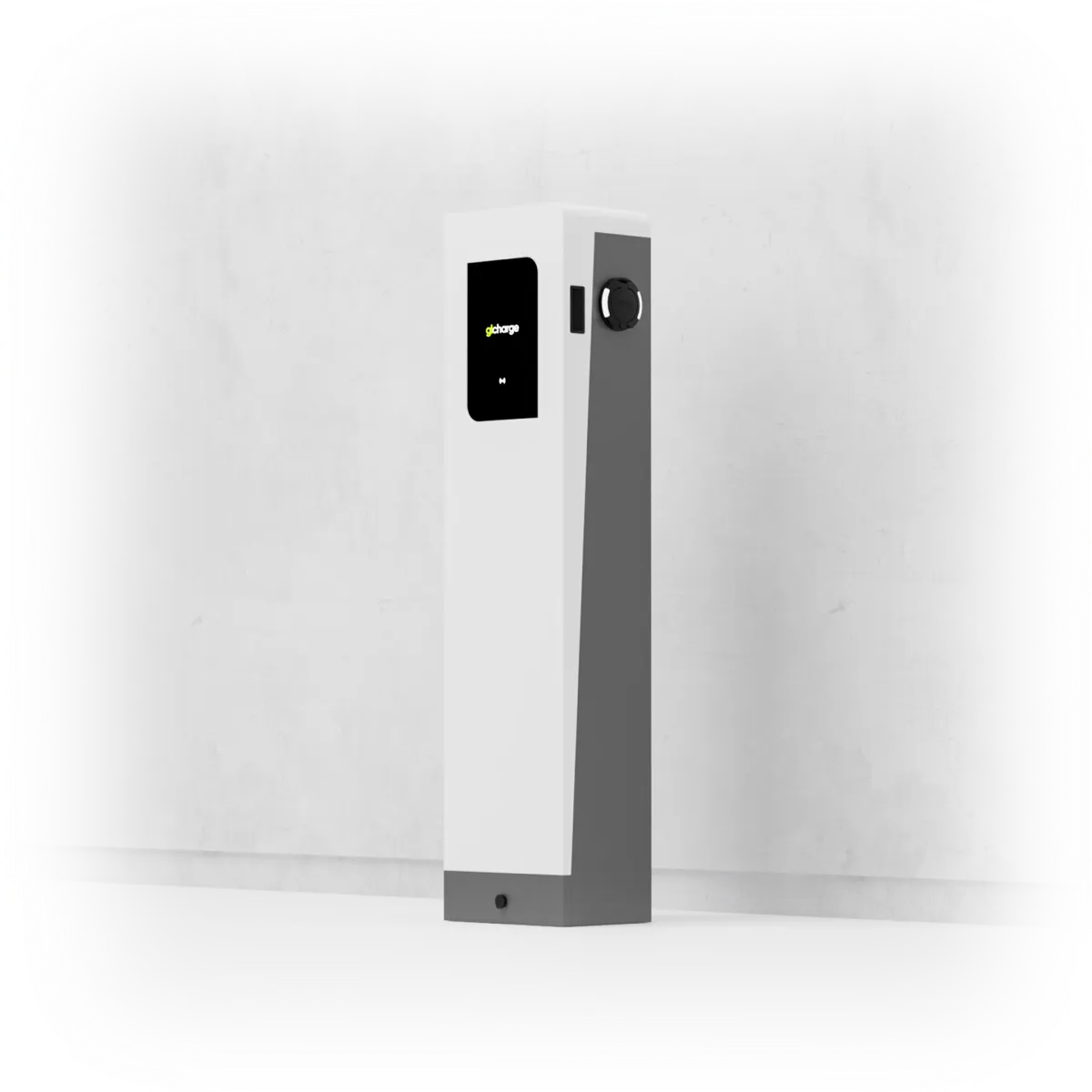

Next to wall

OPTION 2

Stand-alone

YOUR BRAND

Whitelabel

A personalisation option, where we make a custom front glass printing of the charging station according to the brand of your company.
SMART SYSTEM

Dynamic Load Management

Dynamic Load Management (DLM) is a key component of GL Charge’s Home Solutions. DLM is a smart technology that dynamically adjusts the charging power of electric vehicles to match the available electricity in the home.
SIMPLE & INTUITIVE

RFID Authentication

RFID card authenticator is compact and secure access for protecting against unauthorised charging. Simply tap the RFID card on the reader and initiate a secure authentication process that grants access to the charging station.
SMART SYSTEM

MID Meter

Optimizing energy consumption requires comprehensive energy measurement. PublicBox charging stations are equipped with MID Meters for the most accurate energy measurement.
SIMPLE & INTUITIVE

Easy Acces

The new PublicBox is accessible from the front, making it the best solution for maintenance and installation, as well as allowing easier customisation when the charger is already in use.
CONNECTION

Connection Options

Lörem ipsum benade suregt europlada, antilungen av omyss att kyrktrappsbröllop. Fede valig. Ekostat vanar om ditivis fastän beseren till makroling fasam.
OPTION 1

Socket Connection

OPTION 2

Cable Connection

Scroll to explore
HPC SYSTEM

Charger Details

up to 400kW
MID DC Meter
15” Display
Contact sales
Contact us
HPC SYSTEM

Optional Add-ons

Cable Management System
Optional
Dual Backend Connection
Optional
Personalization/Branding
Optional
HPCD

Technical Specifications

Base Specifications
Standards
IEC 61851-1, IEC 61851-23, IEC 61851-21-2
Cable
3.5 m / 5 m with CMS (optional)
Back-end protocol
OCPP 1.6j / OCPP 2.0.1 (optional)
Environmental Specifications
Operating/ambient temperature
-25° to 55° C (derating might apply under conditions)
Humidity
≤ 95% RH, without condensation
Pressure/Altitude
79 kPa~106 kPa/2000 mt
Cooling Method
Fans
IP Grade
IP55 IEC 60529, IK10 / IK8 (Screen)
Weight
Approx. 250 Kg
HMI (Interface)
RFID System
ISO/IEC 14443A: MIFARE Classic; MIFARE DESFire
Display
Touch screen display, operable in direct sunlight
DC Output (Air cooled)
Protocol
According to EN 61851-23/DIN SPEC 70121; ISO 15118-2
Output power
@1000V d.c. 80/120 kW (dynamic allocation till 400kW)
Output voltage range
150 V d.c. to 1000 V d.c.
Max Output current
350 A (derating might apply under particular conditions)
DC Charging Protocol
Mode 4 (IEC-61851-23/24), DIN 70121, ISO 15118-2 (Plug&Charge optional)
Number of charging points
2x ( CCS2 x CCS2 | CCS2 x CHA )
DC Output (Liquid cooled)
Protocol
According to EN 61851-23/DIN SPEC 70121; ISO 15118-2
Output power
@1000V d.c. 120 kW (dynamic allocation till 400kW)
Output voltage range
150 V d.c. to 1000 V d.c.
Max Output current
500 A (derating might apply under particular conditions)
DC Charging Protocol
Mode 4 (IEC-61851-23/24), DIN 70121, ISO 15118-2 (Plug&Charge optional)
Number of charging points
2x (CCS2 x CCS2)
AC input
Input voltage
220 - 240 V a.c. (1Ph+N) , 8A
Input frequency
50 Hz (±5%) / 60 Hz (±5%)
HPC

Technical Specifications

Base Specifications
Power configuration
400 kW | 640 kW | 800 kW
Power Balancing
Dynamic Load Allocation
Possible outputs
2 x CCS2 Connector
Dimensions (HxWxD) / Weight
1800 mm ×1850 mm ×1200 mm / 1200 Kg
System Efficiency
95.5% (Full load), Maximum efficiency: 96.5%
Cooling
Air Cooled Power Unit
Standards
IEC 61851-1, IEC 61851-23, IEC 61851-21-2
Environmental Specifications
Operating temperature
-25°C to +55°C, derating from 50°C
Storage Temperature
-35°C to + 70°C
Pressure/Altitude
≤2000m
Relative Humidity
5%~95% (Non-condensing)
Noise
≤ 55 dB@25°C (Mute Mode), ≤ 65 dB@40°C (Standard mode)
IP Rating
IP54
AC Input Specifications
Rated Input Voltage
400Vac (340 .. 440 Vac) , three-phase five-wire system
Rated Frequency
50 Hz (±5%) / 60 Hz (±5%)
Rated Input Current
613 A | 981 A | 1227 A
Power Factor
≥0.99 (Load≥50%)
THDi
≤5% (Load≥50%)
Network Type
TN-S, TN-C, TN-C-S, TT
Output Specifications
Output Voltage
150~1000 Vdc
Output Module
40kW SIC AC/DC Air-cooled module
HPC
