SIMPLIFIED POWER DISTRIBUTION

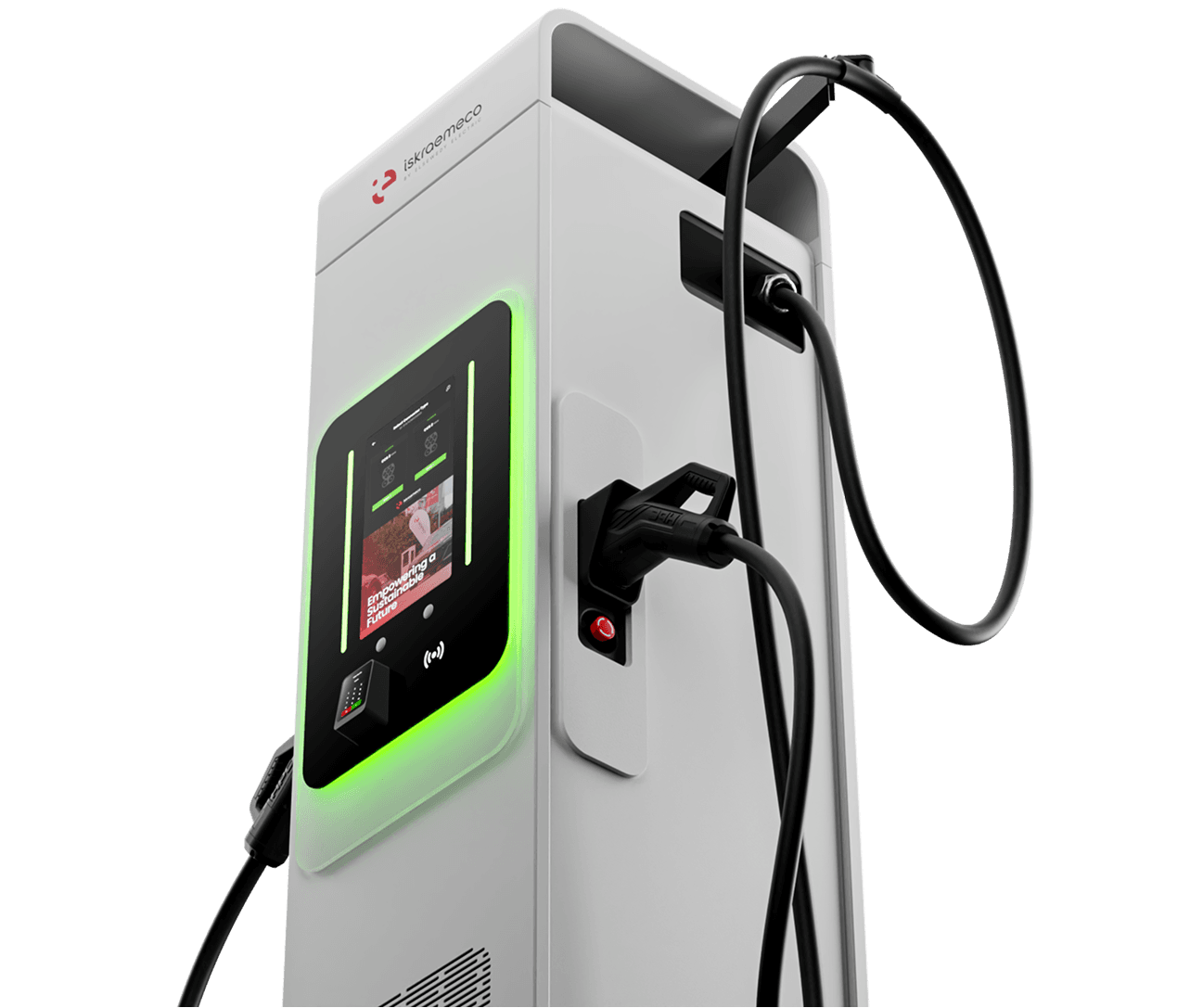

iHPCDD System

The iHPCDD Dispenser (iHPCDD 350 / iHPCDD 500) is a high-performance DC fast charger offering up to 400 kW, featuring a 15” sunlight-readable display, MID DC Meter, and optional cable management. Built for reliability, it supports dual CCS2 connections, load balancing, and OCPP protocols, suitable for both interior and exterior installations.

Contact Sales

Charge any car

Convenient and efficient charging for any car.

Weather proof

Resistant to harsh conditions.

Dual power

Charge two cars simultaneously.

Tried & tested

Charge with ease and confidence.

EASY & CONVENIENT

Main Features

View Docs

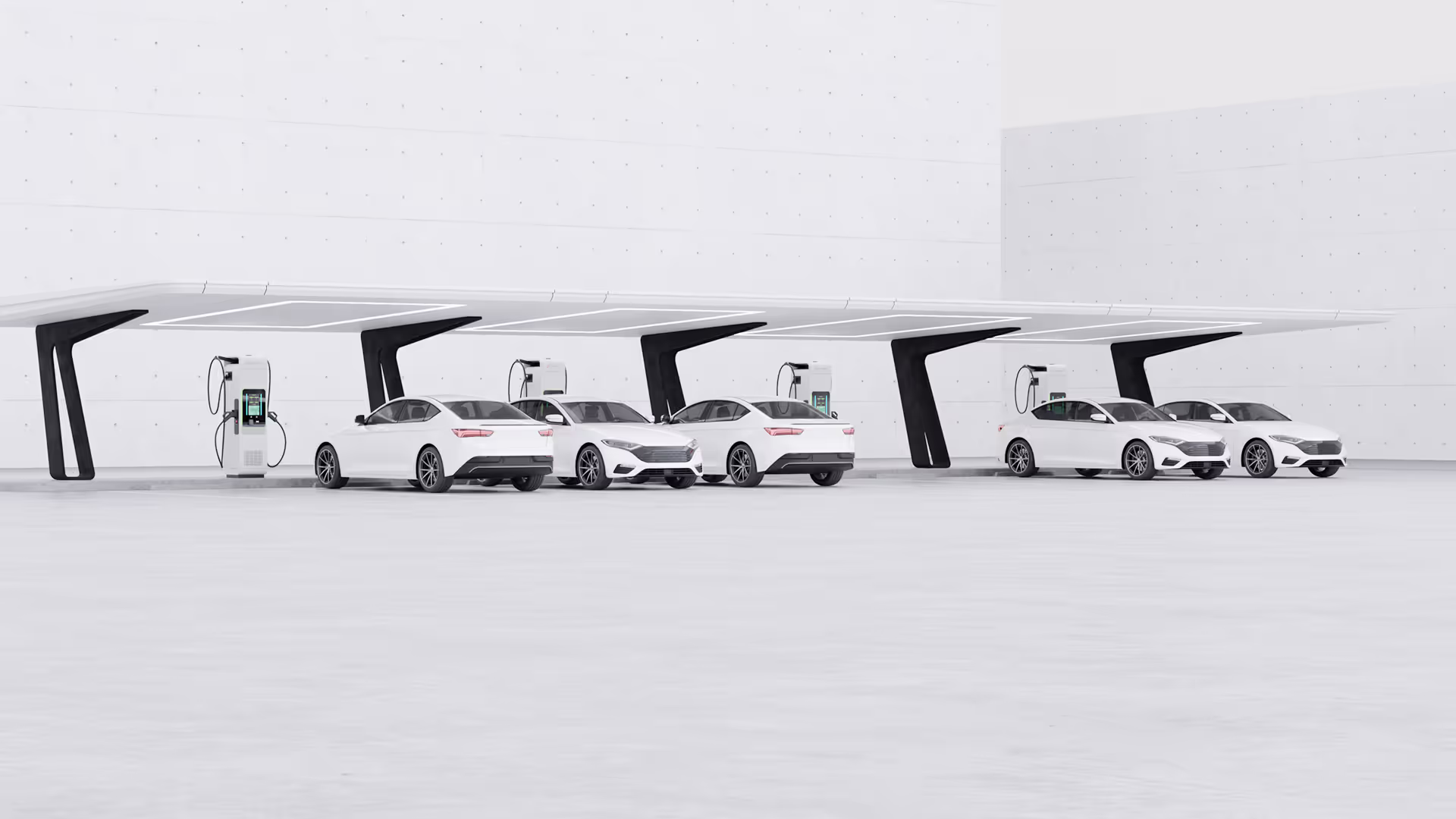

Charge up to 8 cars

Up to 4 HPC Dispensers can be connected to one HPC Power Unit.

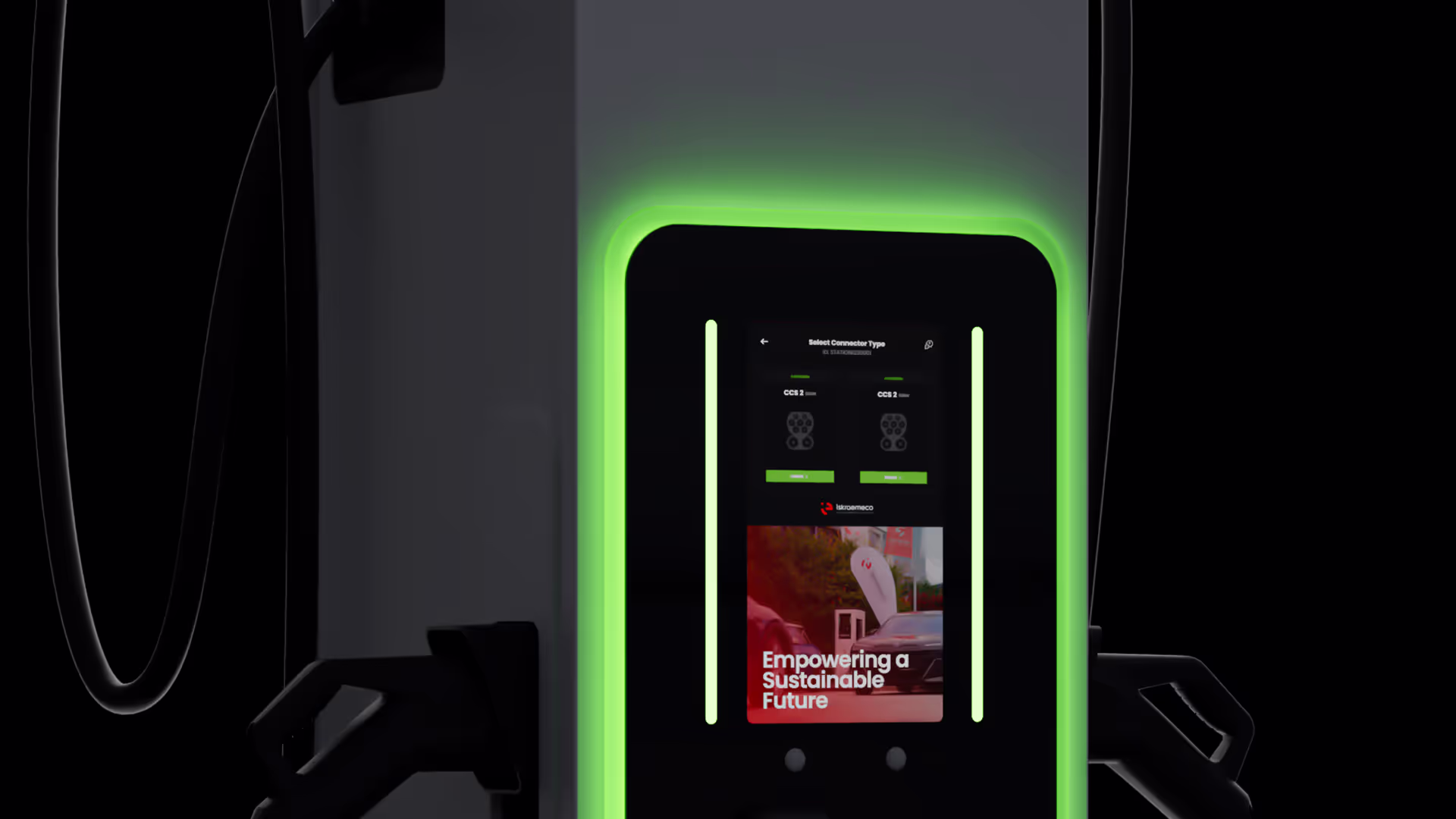

Fully customisable HMI

15” display with advertising space.

Cable Management

Optional CMS system for ease of use.

Dynamic load management

Charge your car without thinking about excessive usage.

NEW ERA OF EV CHARGING

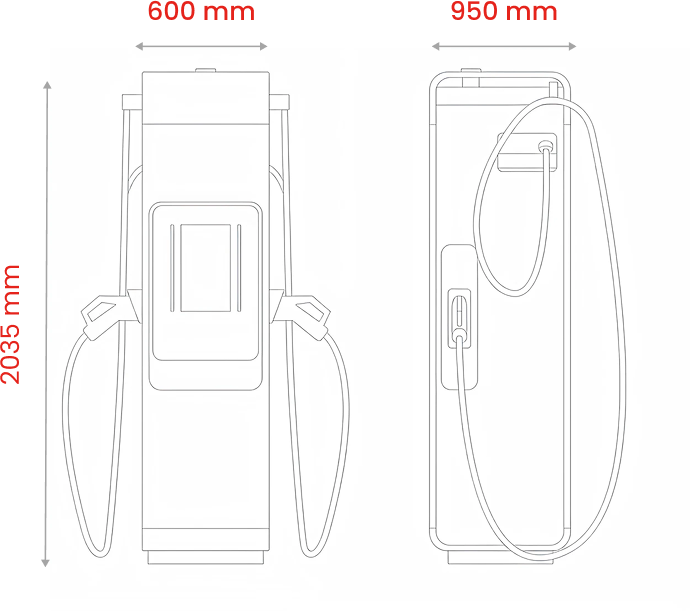

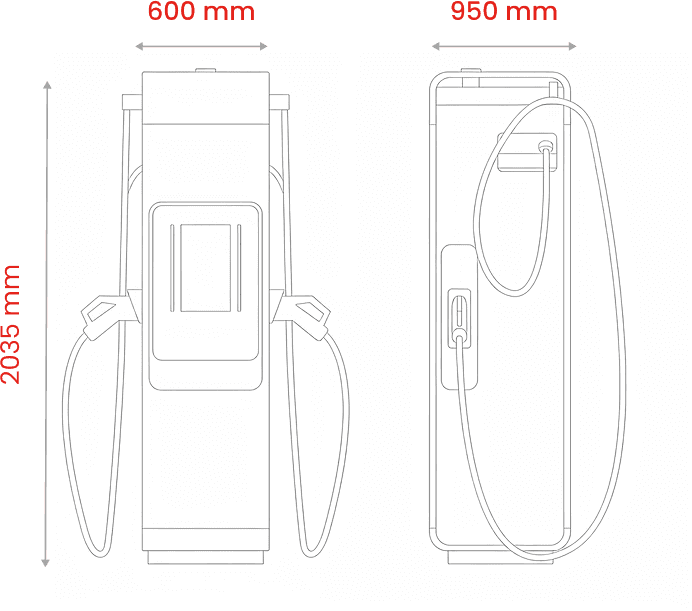

iHPCDD Dispenser

The iHPCDD Dispenser (iHPCDD 350 / iHPCDD 500) is a high-power DC fast charger designed for rapid and efficient EV charging, offering up to 400 kW. Featuring a 15” sunlight-readable touchscreen, MID DC Meter, and dual CCS2 charging ports, it ensures a smooth user experience.

Contact sales

NEW ERA OF EV CHARGING

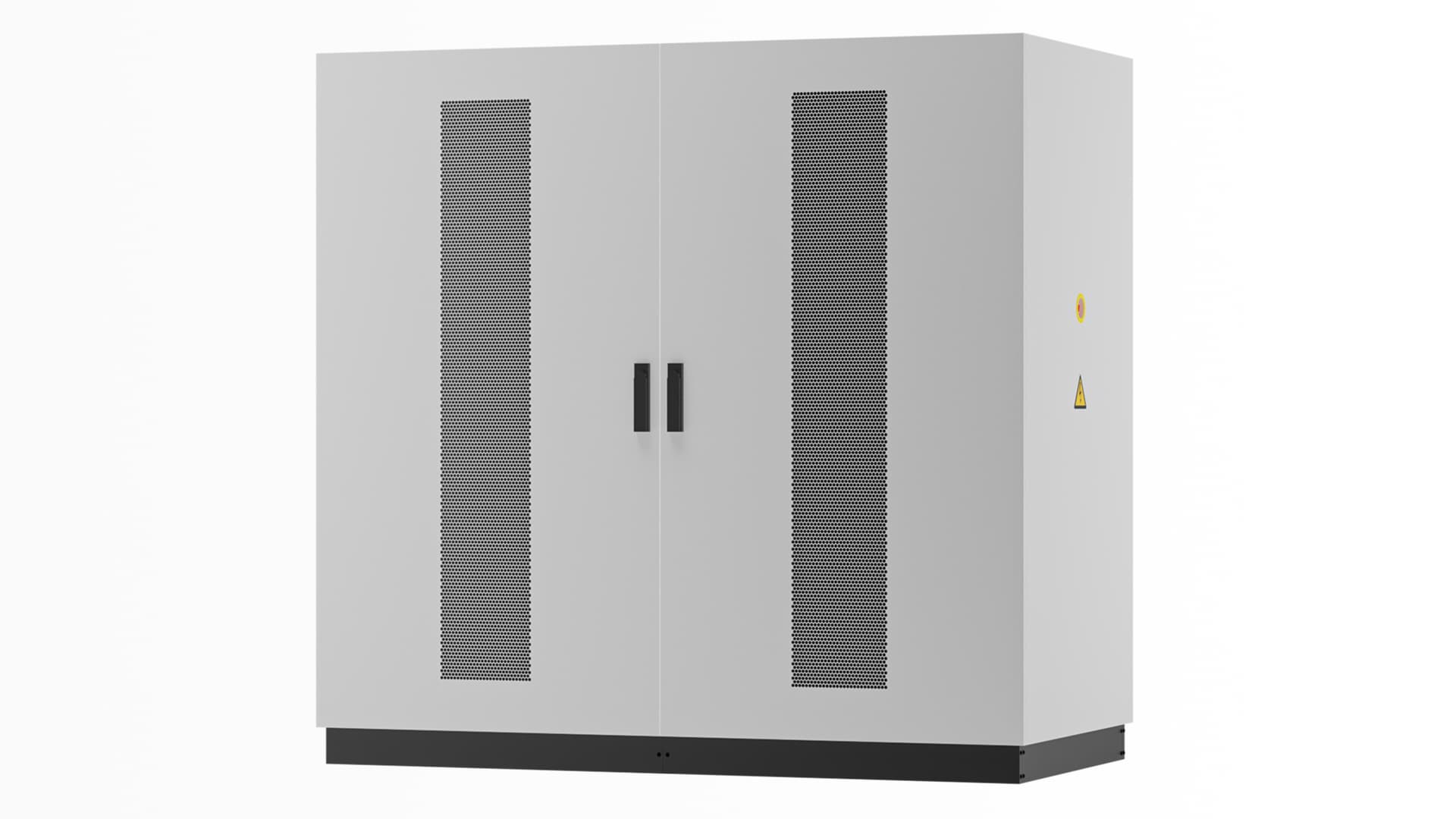

iHPCDPU Power Unit

Unleash ultra-fast charging with the iHPCDPU Power Unit, delivering up to 800 kW of dynamic power distribution. Designed for maximum efficiency (up to 96.5%), it supports dual CCS2 connections and intelligent load balancing to optimise energy usage.

Contact sales

HPC SYSTEM

Charger Details

Up to 400 kW

MID DC Meter

15” Display

HPC SYSTEM

Optional Add-ons

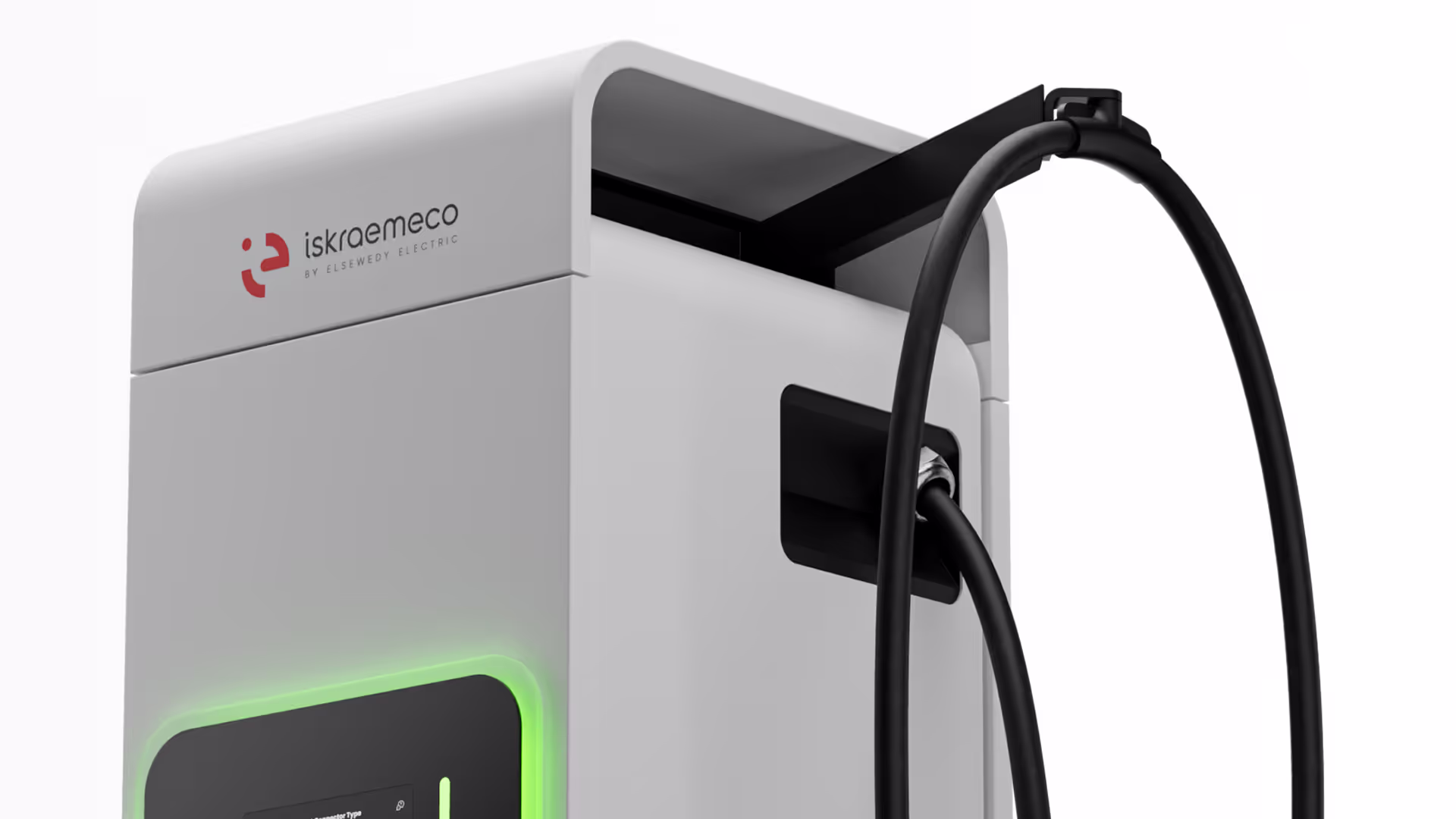

Cable Management System

Optional

Dual Backend Connection

Optional

Personalisation/Branding

Optional

iHPCDD

Technical Specifications

Base Specifications

Standards

IEC 61851-1, IEC 61851-23, IEC 61851-21-2

Cable

3.5 m / 5 m with CMS (optional)

Back-end protocol

OCPP 1.6j / OCPP 2.0.1 (optional)

Environmental Specifications

Operating/ambient temperature

-25° to 55° C (derating might apply under conditions)

Humidity

≤ 95% RH, without condensation

Pressure/Altitude

79 kPa~106 kPa / 2000 m

Cooling Method

Fans

IP Grade

IP55 IEC 60529, IK10 / IK8 (Screen)

Weight

Approx. 250 kg

Material

Structural steel

HMI (Interface)

RFID System

ISO/IEC 14443A: MIFARE Classic; MIFARE DESFire

Display

Touch screen display, operable in direct sunlight

DC Output (Air cooled)

Protocol

According to EN 61851-23/DIN SPEC 70121; ISO 15118-2

Output power

@1000 V d.c. 80/120 kW (dynamic allocation till 400 kW)

Output voltage range

150 V d.c. to 1000 V d.c.

Max Output current

350 A (Boost till 400 A, derating might apply under particular conditions)

DC Charging Protocol

Mode 4 (IEC-61851-23/24), DIN 70121, ISO 15118-2 (Plug & Charge optional)

Number of charging points

2x ( CCS2 x CCS2 | CCS2 x CHA )

DC Output (Liquid cooled)

Protocol

According to EN 61851-23/DIN SPEC 70121; ISO 15118-2

Output power

@1000 V d.c. 120 kW (dynamic allocation till 400 kW)

Output voltage range

150 V d.c. to 1000 V d.c.

Max Output current

500 A (derating might apply under particular conditions)

DC Charging Protocol

Mode 4 (IEC-61851-23/24), DIN 70121, ISO 15118-2 (Plug & Charge optional)

Number of charging points

2x (CCS2 x CCS2)

AC input

Input voltage

220 - 240 V a.c. (1Ph+N), 8 A

Input frequency

50 Hz (±5%) / 60 Hz (±5%)

iHPCPU

Technical Specifications

Base Specifications

Power configuration

400 kW | 640 kW | 800 kW

Power Balancing

Dynamic Load Allocation

Possible outputs

2 x CCS2 Connector

Dimensions (HxWxD) / Weight

1800 mm × 1850 mm × 1200 mm / 1200 kg

System Efficiency

95.5% (Full load), Maximum efficiency: 96.5%

Cooling

Air Cooled Power Unit

Standards

IEC 61851-1, IEC 61851-23, IEC 61851-21-2

Environmental Specifications

Operating temperature

-25 °C to +55 °C, derating from 50 °C

Storage Temperature

-35 °C to +70 °C

Pressure/Altitude

≤2000 m

Relative Humidity

5%~95% (Non-condensing)

Noise

≤ 55 dB@25 °C (Mute Mode), ≤ 65 dB@40 °C (Standard mode)

IP Rating

IP55 IEC 60529, IK10 / IK8 (Screen)

AC Input Specifications

Rated Input Voltage

400 Vac (340 .. 440 Vac), three-phase five-wire system

Rated Frequency

50 Hz (±5%) / 60 Hz (±5%)

Rated Input Current

613 A | 981 A | 1227 A

Power Factor

≥0.99 (Load≥50%)

THDi

≤5% (Load≥50%)

Network Type

TN-S, TN-C, TN-C-S, TT

Output Specifications

Output Voltage

150~1000 Vdc

Output Module

40 kW SIC AC/DC Air-cooled module
